HOURS —- Keep track of overall hours for gas engine/equipment, perform the 50 hours service intervals to next oil change;Overall hours range: 0-999,99 hours with 0.1/1 hour resolution, time of change oil range: 50 hours.
SIGNAL CONNECTION —- Complicable with wide voltage range AC/DC 5V to 277V, it can be used on various of AC/DC power supplied device; the connection poles are nondistinctive.
INSTALLATION —- Easy to mount it by drill-in and snap-in with standard panel cut-out size(1.5×1 inches), ;well-completed accessories kits will keep the mounting and power connection more stable.
WATER/SHOCK RESISTENCE —- 100% epoxy resin sealing craft can be kept it away from the damp or moist, which also prevent the strong shock between transport.

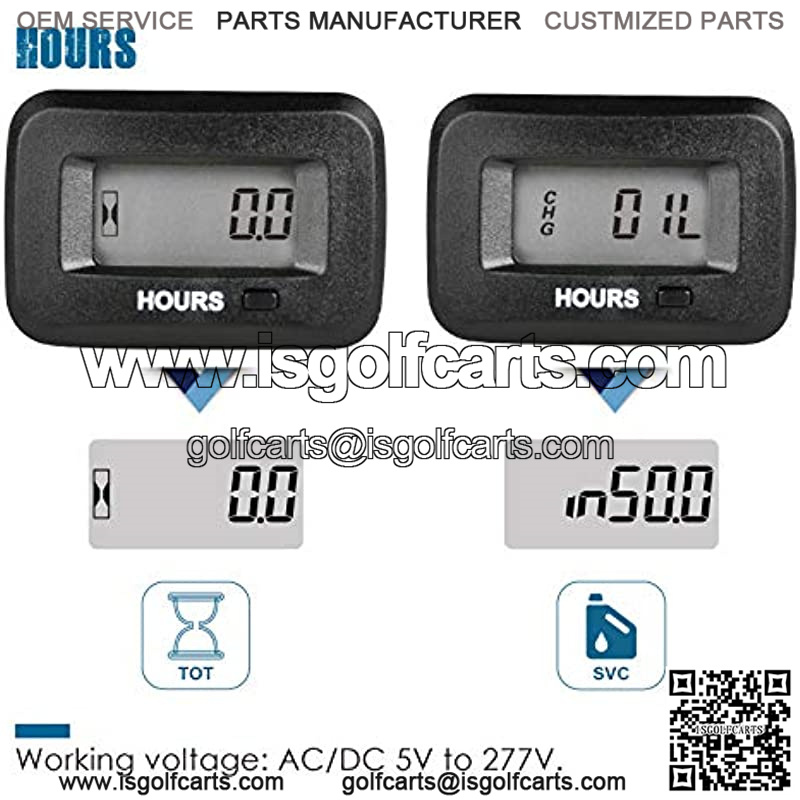

2. Service Timer(SVC)—- Maintenance reminder for change oil filter, countdown tracking.
Service timer is resettable,default maintenance period range 0-50H.When maintenance interval time arrived, it will be remind by alternative display.Maintenace status will be remind 1 hour in advance.
1.Hour Meter (TOT) Features
Help to track how many hours are the equipment working
Display shows total running time and remains visible.Total Hours reading displays from 0 to 999,99 Hours, 0.1H/1H hour accuracy,TOT hours are non-resettable.
3.has established a complete laboratory for testing and improving the product’s quality
Buttons Testing
The buttons can works well after 10,000 repeated taps with a 300g weight.
High Pressure Water Washer Testing
Display with PC transparent board can keep it away from the damp or moist.It also prevent the strong shock when it is cleaning.
Drop testing
Favorable anti-vibration performance can suffer strong vibrations when the equipments is working.
High & Low temperature
It can works well in temperature environments temperature: -40 C – +70 C.
Installation method
This hour meter suitable for Outdoor Power Equipment,Generators,Agriculture,Construction Machinery Vehicles etc… such as:Lawn Mower Garden Tractor Riding mower Leaf Blower Pressure washer chainsaw Snowblower Brush Mower Line Trimmer string trimmer Portable inverter generator Motorcycle Dirtbike ATV UTV Scooter Paramotor Golf cart Outboard Jetski Pontoon boat Mercury Raceboat Hovercraft etc..
SPECIFICATIONS
Product
RL-HM038AG-H
LCD Screen Size
12.5 24.5mm(0.49*0.96inches)
Product size
46x31x37mm(1.81*1.22*1.45inches)
Timing range
0-99999H
Timing accuracy
0.1H/1H
GHG OIL time
50H
Working voltage
AC/DC 5-277V
Battery
Internal CR2050 battery

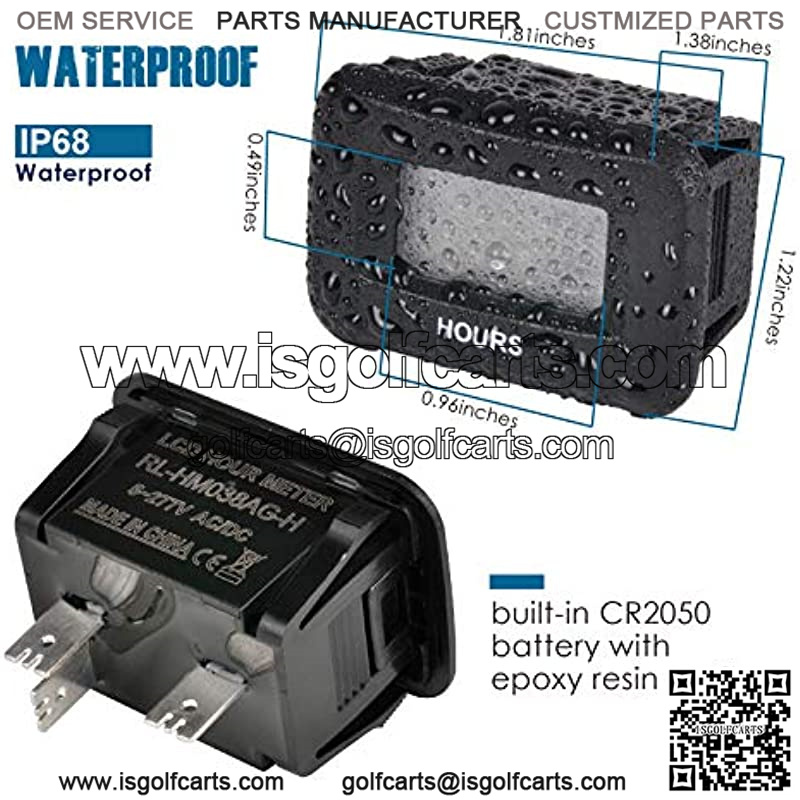

Waterproof rate
IP68

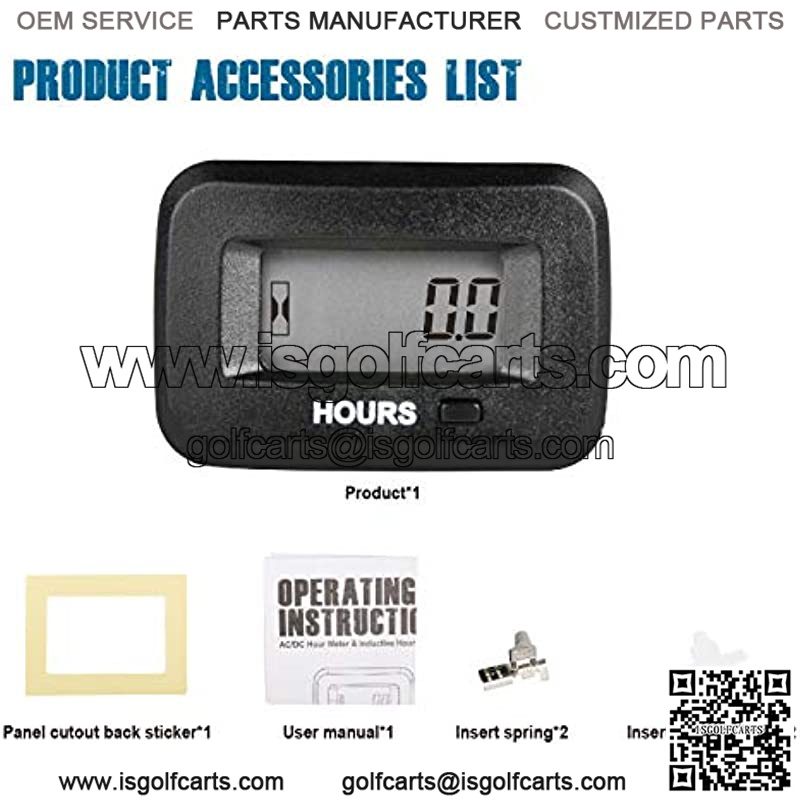

Accessories list
Spring sheaths,insert sheaths,user manual
