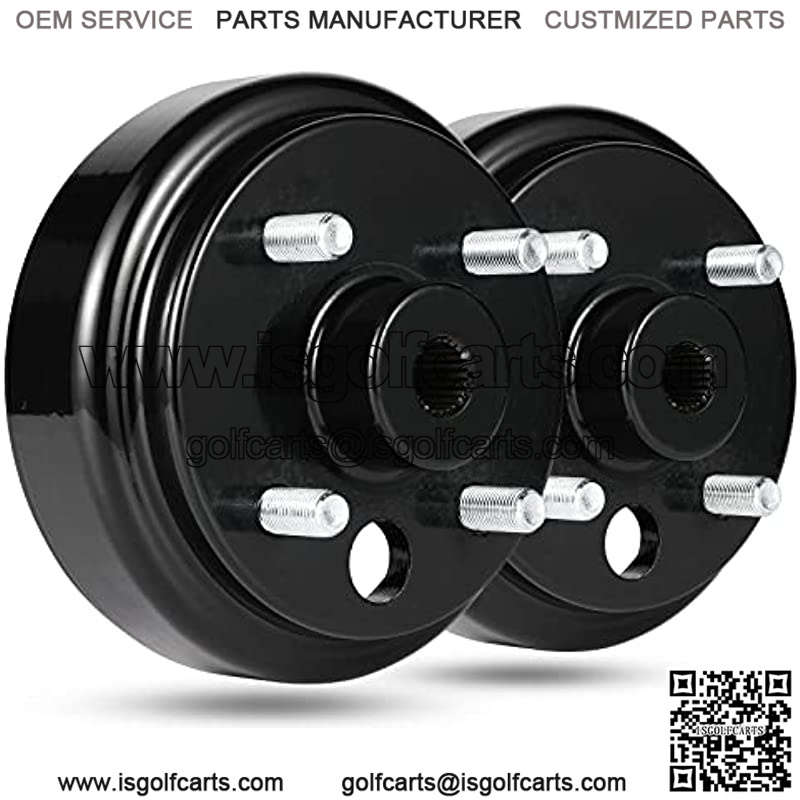

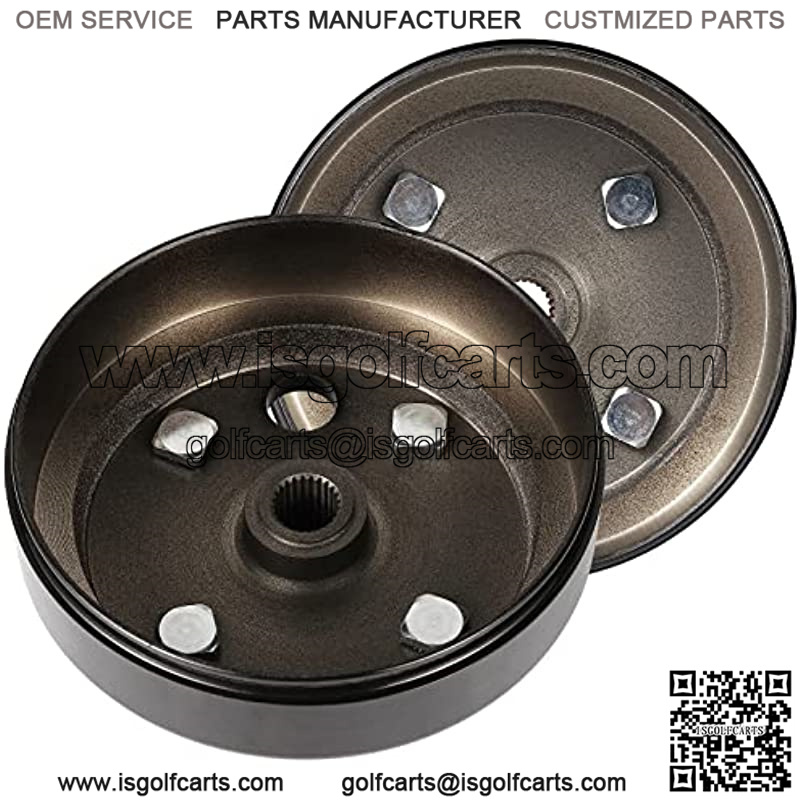

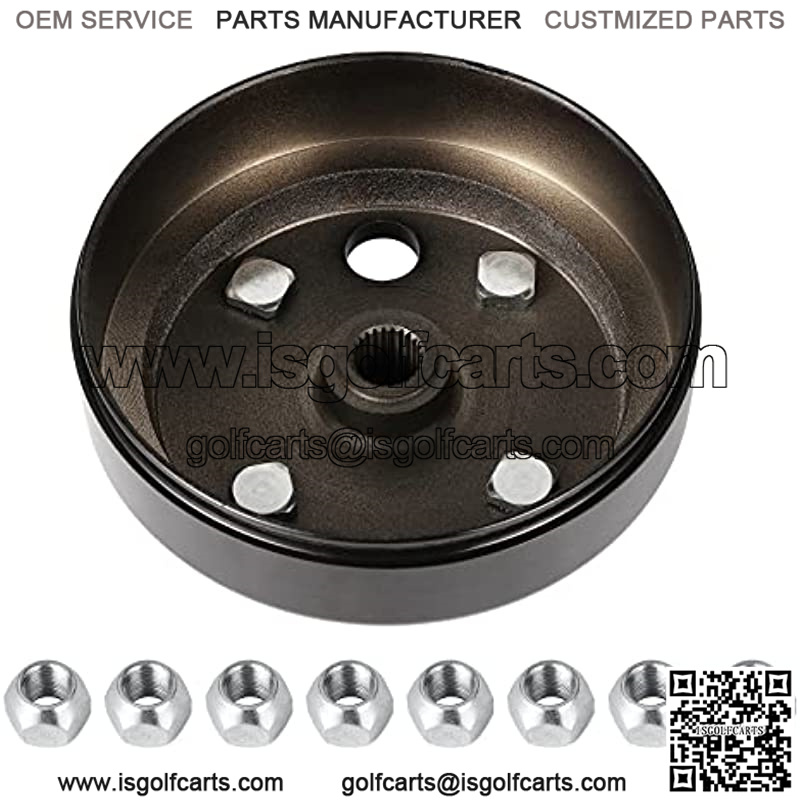

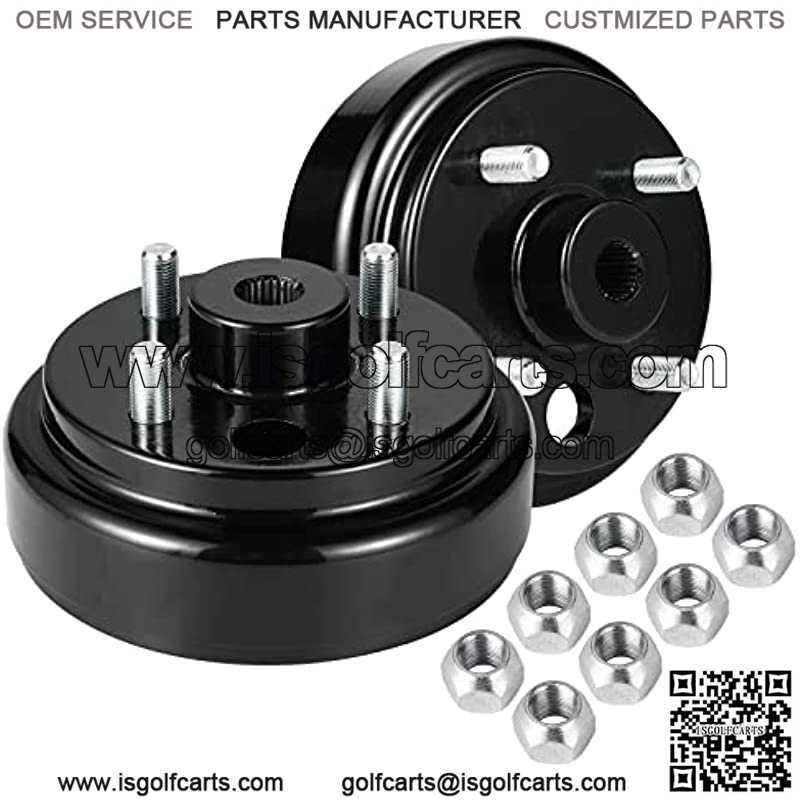

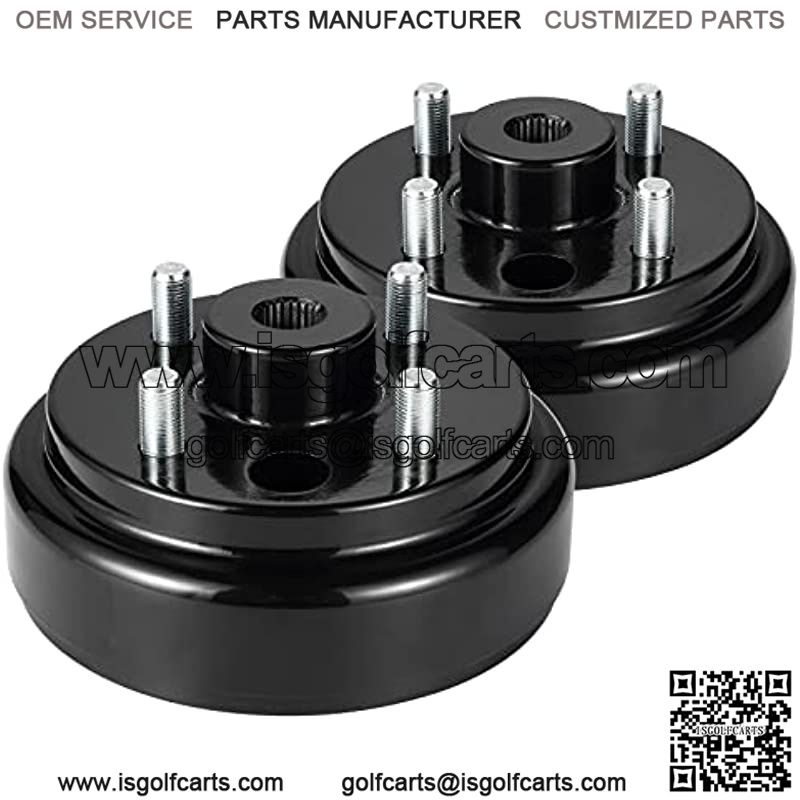

??Universal Compatible??The brake drum/hub assembly replaces part# 19186G1, be used on 1982-current E-Z-GO Electric Vehicles
??EZGO PDS Brake Drum??The vehicle’s brake drums are an important part of maintaining the safe braking ability of the vehicle and should be replaced in a timely manner
??Accurate Locating Hole??Machined just as the professional OEM manufacturer, perfectly installed on your vehicle without any modifications
??About Installation??When replacing this brake drum, please check the hub assembly as well. This brake hub/drum is a replacement for the earlier hub & drum and has the star spline instead of the straight key. There is a 3/4-Inch center hole with a 24-tooth star spline, the hub is held in place by a castellated nut (5/8-Inch x 18tpi) and a thick (118-Inch) flat washer
??Warm Tips??Hub spline and rear axle shaft spline should be matched tight. When one of them is wear out, both of them should be replaced at the same time. Other wise the hub spline will strip soon. The EZGO brake drum is held in place by a castellated nut and a thick flat washer. this hub/drum will not operate with a keyed axle/hub interface
Brand: YUWEIDG0769 Model: Golf Cart Brake Drums Kit Replace OEM Part Number: 19186G1P Apply For: EZGO TXT 1982-up Electric Vehicles/ Golf Cart Function: Reduce the risk of strip off after the hub spline is excessively worn to ensure driving safety Package List 2Pack* Golf Cart Brake Drums (OEM# 19186G1P) Warm Tip Hub spline and rear axle shaft spline should be matched tight. When one of them is wear out, both of them should be replaced at the same time. Other wise the hub spline will strip soon. The EZGO brake drum is held in place by a castellated nut and a thick flat washer. this hub/drum will not operate with a keyed axle/hub interface Warranty 1. One month free return, replacement or maintenance if any quality problem within 1 year 2. If there any issue with it, don’t hesitate to contact us via Amazon message , and we will response and solve it within 24-48 hour
