??Wide Application??Battery isolator switch is universal used for Car, Van, Caravan, RV, Truck, Marine Boat, Camper, Travel Trailer, Battery Box, ATV, UTV or or any vehicle where a battery cut-off switch is required.
??Compatibility & Benefits??Used for DC 12 – 48V systems to isolate and secure the electrical system; eliminate any power draw from the battery when vehicle is not in use, disconnects the battery safely; provide a reliable way to shutdown electrical power during maintenance and protect batteries from excessive drain.
??Heavy Duty Construction??Sturdy durable ABS housing, rear cover insulates terminals against any short of circuits; 4 removable side plates provide access of up to 1/0 cables; Tin-plated copper studs and nuts for strong oxidation and corrosion resistance
??Simple Operation??On/Off 2 positions (0=Off, 1=On), 275A continuous at DC 12V, 455A Intermittent at DC 12V, 1250 A momentary at DC 12V; Voltage: 12V- 48V DC; Terminal Stud Size: 2×3/8″ (10mm)
??Rest-Assure Warranty??Package Include: 1 x battery switch; 4 x mounting bolts. Fast shipping & excellent customer service; 12 Months warranty guarantee for refund or replacement of any defective one
Gioyonil heavy-duty battery kill switch suitable for devices up to 48V. Package includes removable sides, backplate, and mounting screws for easy installation. Its Contour Locking System means it can stand alone or be locked alongside other switches.

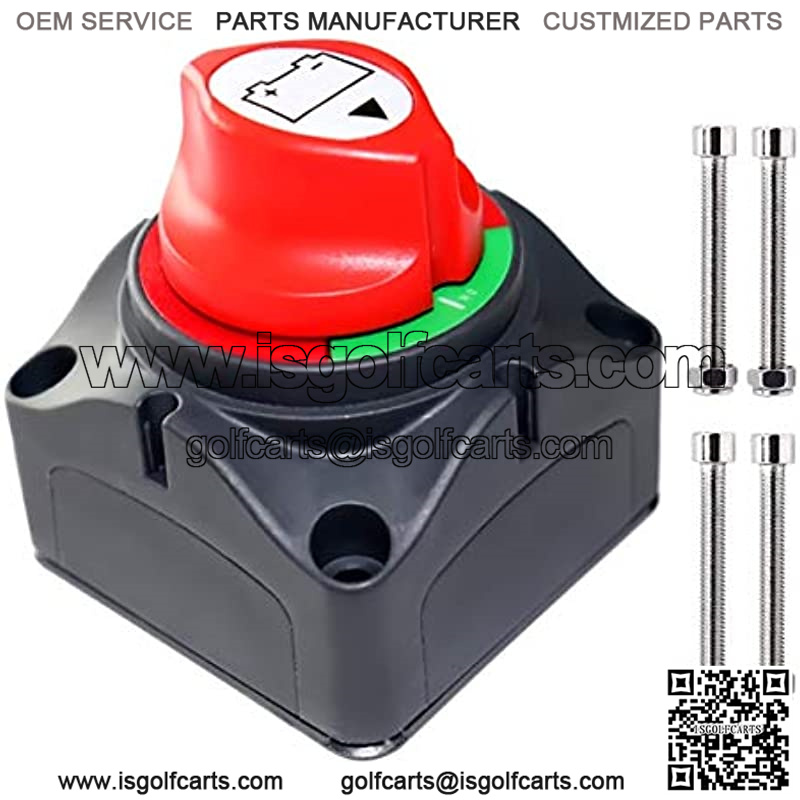

Power Cut Off Master Switch
Easy to Use ON/OFF Switch Clear ON/OFF Knob, easy to use.ON (=1) represents the closed circuit and OFF(=0) represents the cut-off circuit.Used for DC 12-48V systems to isolate and secure the electrical system.
Battery Disconnect Switch Features
Specifications
Continuous Rating: 275 Amps DCIntermittent Rating: 455 Amps DCMomentary Rating: 1250 Amps DCVoltage Rating: 12-48V DCOperation: On/OffTerminal Stud Size: 2×3/8??Mounting: Recessed or SurfaceSize: 69 (L)x69 (W)x75(H)mm/2.75×2.75×3 inchMaterials: ABS plastic housingWater Resistance: Yes
What??s in box 1 x battery switch4 x mounting bolts
Why Choosing Us
Durable & Secure
Brass terminals, sleek modern appearance, sturdy and durable.Removable rear cover insulates the rear terminals against any short circuits.
Sturdy Heavy Duty Kill Switch
Fully enclosed to protect wiring from dirt, corrosion, and rain. The switch is smooth but solid and stays securely at either position.
Power Cut-OFF Switch Benefit
Our isolator switch benefits: battery drain prevention, protection against thefts, power maintenance.
Installation Tips:
Step 1: Remove Cables from Battery(You should always disconnect both the positive and the negative cables from the battery poles to ensure your safety.)Step 2: Remove Negative Cable Terminal(Once you have both cables removed, you need to remove the terminal from the end of the negative one.)Step 3: Wire in Switch(Wire it in between the cable and the battery terminal so that the switch will break the connection to the battery when it is off. Make sure when you add the switch that you install it in the “On” position.)Step 4: Reconnect TerminalStep 5: Screw Switch to FrameStep 6: Connect Battery Cables
