Product Feature

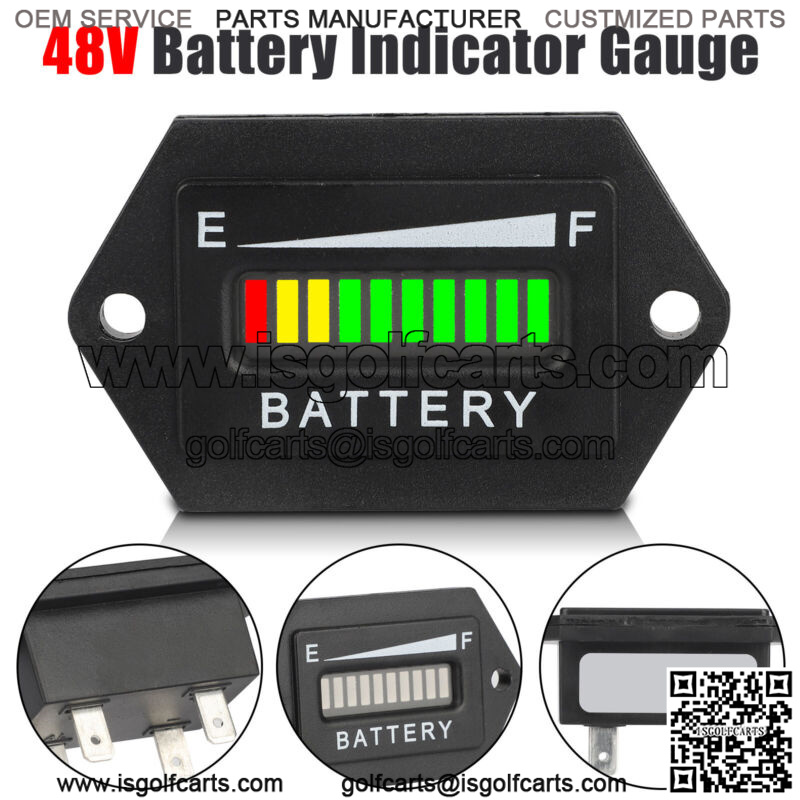

Battery Level Meter: It used on battery powered device to state the remain battery capacity;10 LED bars display the power percentage by different colors(1 red, 2 yellow,7 green);Workable on lead-acid battery,Wide operation voltage range 48V.
Capacity Display: With a control terminal ‘C’.Only connect the C terminal to the power positive or the positive terminal,it can work to measure the current battery capacity and lit the corresponding LED bar.
Installation: Easy to install;Snap-in design and fits standard panel cut-out;panel cutout. size:Approx 37*25mm(1.46×0.98 inch).
Product Specification
Type 48V Battery Indicator Meter
Item Weight 1.06 ounces
Product Dimensions 2.09 x 1.26 x 0.98 inches
Voltage 48 Volts
Display Screen< 10 Segment LED Bar Graph
Operate Temperature -30 C- +85 C
Pin Type +,-,C
Case Style Front Panel Mount
Package Included
1 x 48V LED Battery Indicator
