1 Battery Level Indicator —- Measure and display the current capacity for lead acid battery
Determine how much power left for battery.

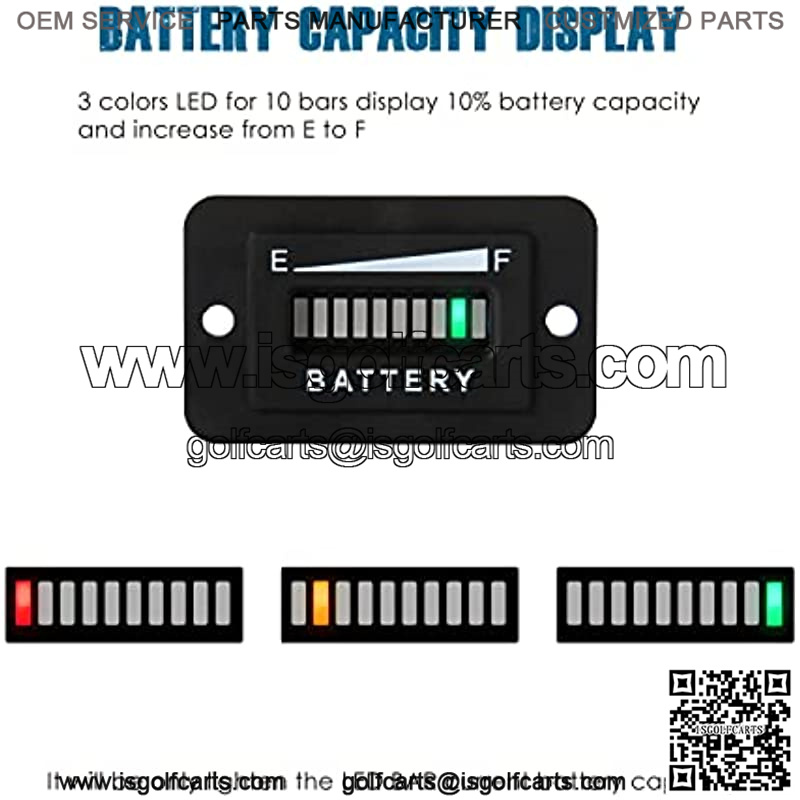

3 colors(1 red, 2 yellows and 7 greens) for 10 LED bars with 10% capacity per each.
It indicate the full battery capacity by first green LED bar, and low battery capacity by final red LED bar.
Different battery capacity will be displayed by related voltage percentage discharge from 10% to 90% (full to empty)
2 Charging Reminder
When battery power is low, it will flash to remind by red and yellow bars alternatively.
It will display the charging status by voltage percentage change from 90% to 10(empty to full).
3 Connection

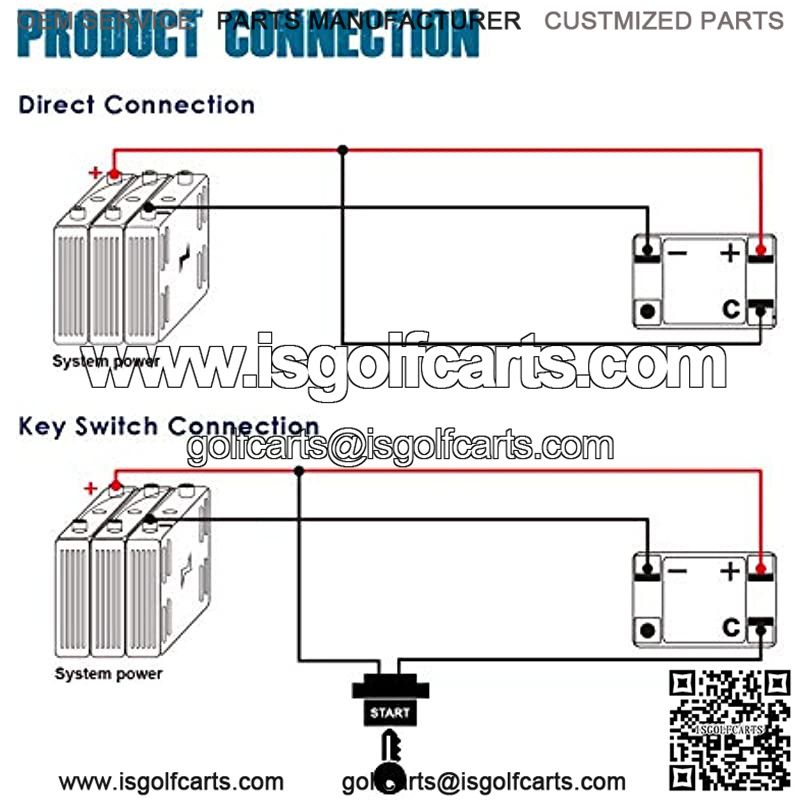

You can connect your battery with device directly by positive, negative and C plugs(C is neccessary connect plug)
You can connect your battery with device by key switch control by positive,negative and C plugs(C is neccessary connect plug, key switch with positive plug)
Once LED bar scan from F to E, that means connection is successful.
4 Specifications
Product size 53x32x24mm(2.09×1.25×0.95 inches)
Operared Voltage: 36V;Operated Current:20mA;Operated Temperature:-10 to +50
Applicable Battery Type: Lead Acid
Accessories: Screws,Insert springs,plug spring sheath,user manual.
CE RoHS certification

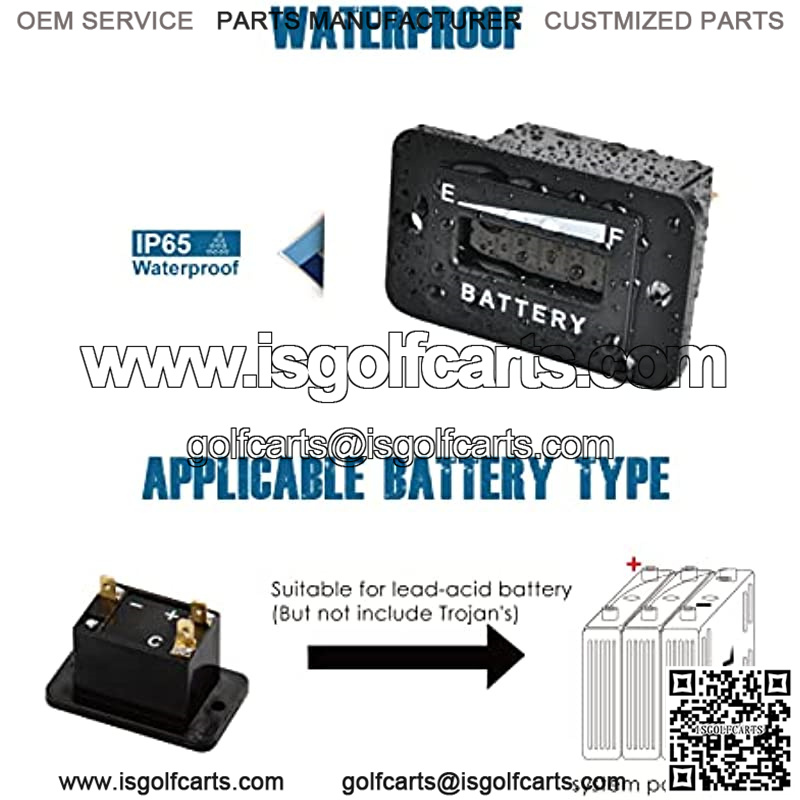

Waterproof rate: IP65.
5 Applications
It can be worked on Electric car,Forklift,Golf cart and Stacking machine etc.
APPLICATION
It can be worked on Golf cart,Forklift,Electric car and stacking machine etc.
ELECTRIC CAR
FORKLIFT
GOLF CART
STACKING MACHINE
