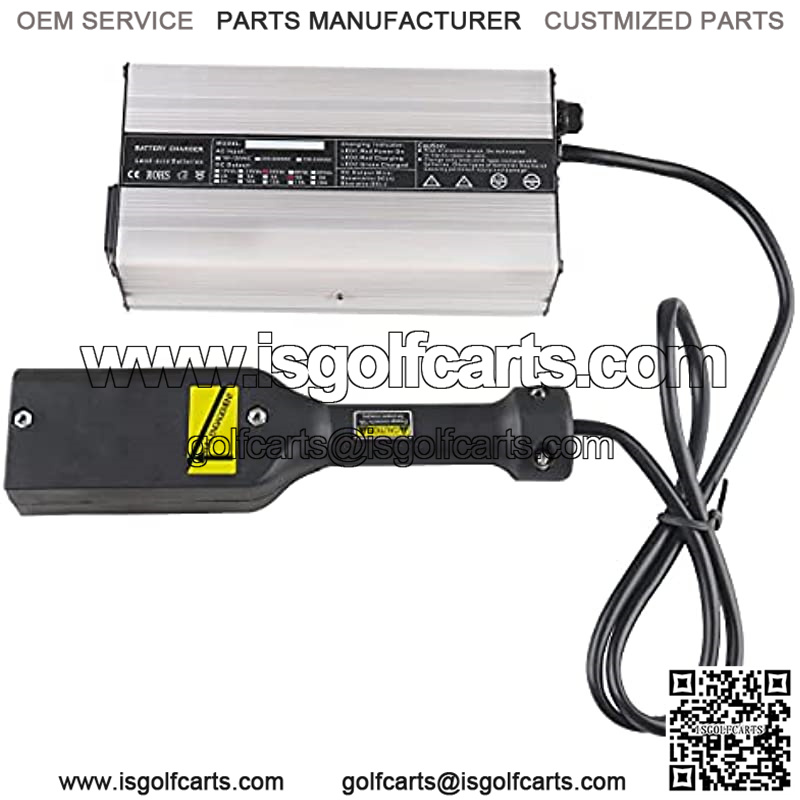

1.36 Volt Battery Charger Replacement for EZGO TXT Medalist Golf Cart

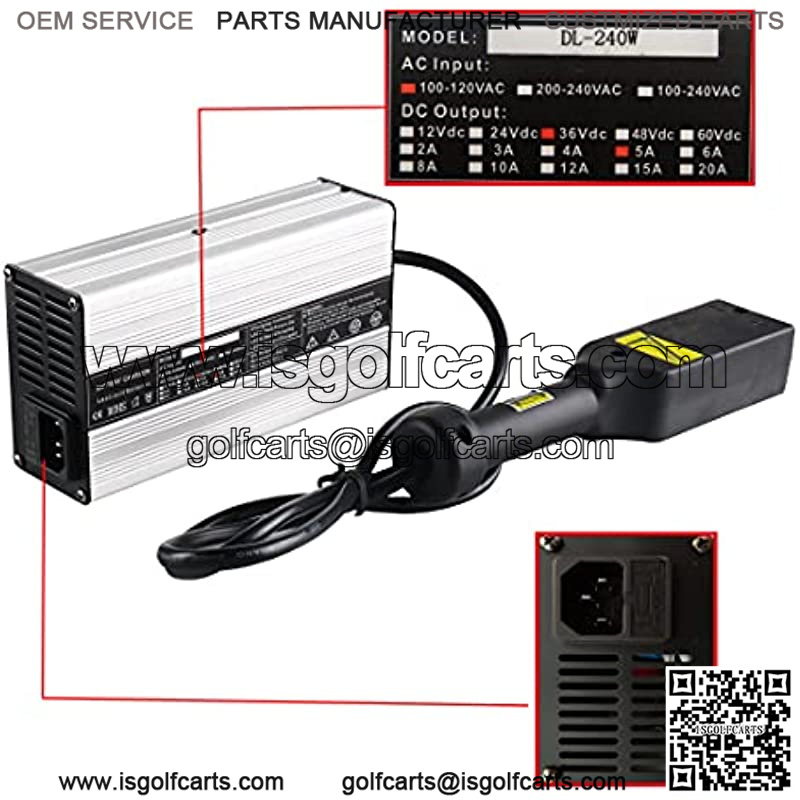

2.Input: 110-120V AC.Output: 36V 5 Amps,4-6 Hour Recharge Time
3.With trickle charging function, it can extend battery life and help improve performance.This mode also makes it hard for your battery to overcharge.
4.Charger has 2 LED lights that indicate the charging status.
Operations:
1.Check if your local mains supply conforms to charger’s input voltage 110 or 230V. Then connect the charger system to a wall socket. If charger has switch with OFF position, it MUsT be set to ON.
2. LED1 RED confirms AC power on, and the LED2 GREEN confirms charger connects well.
3. Connect the plug or the DC Output cord to battery terminals.
LED2 RED confirms charger is charging, LED2 GREEN confirms battery fully charged(N Positive+;L Negative-;Brown+ve terminal, Blue-ve terminal).
(1)36V 5 AMP Automatic Battery Charger.
This product is made for overnight charging. Overnight Charging takes between 4-6 Hours, It may take longer than that if you have a battery in poor condition. The Trickle charge ability will increase the battery life and help out with better performance. This mode also makes it hard for your battery to overcharge.
(2)High-quality aluminum shell
The charger body adopts an aluminum shell. not easy to be damaged, not easy to deform.heat dissipation is fast.bringing you a high-quality experience Automatic Fan Forced Ventilation

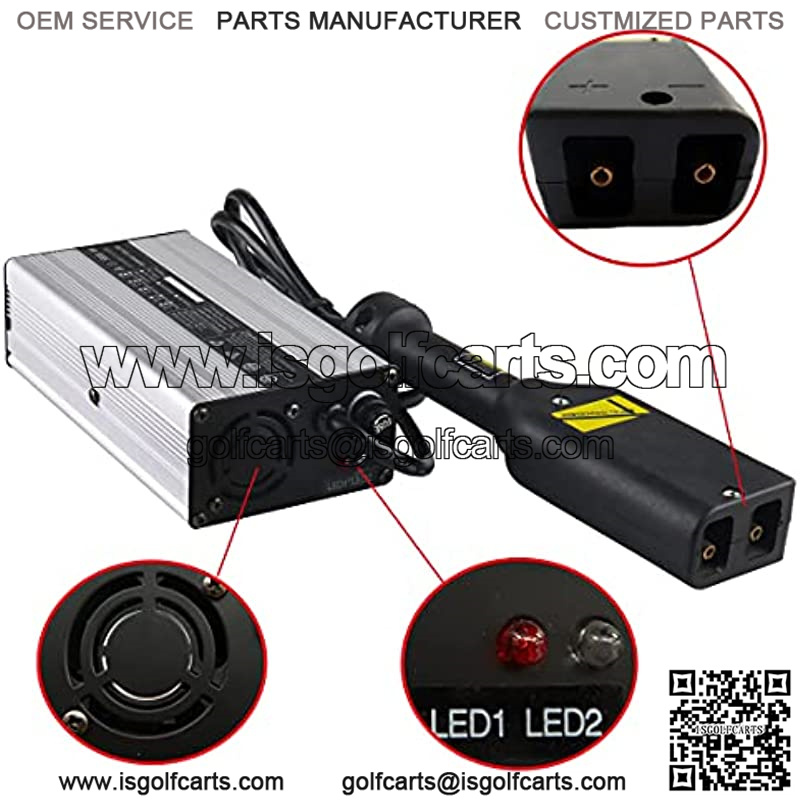

(3)2 LED lights indicate the charging status.
LED1 RED confirms AC power on.the LED2 GREEN confirms charger connects well.
Packing list:
1.charger 1pcs
2.User manual 1pcs
3.Direct wired DCwires
4.AC power cord
