Universal battery capacity indicator voltage meter – wide voltage input range DC 12V-84V Lead-acid Batteries and 3S-26S Lithium Batteries: Ternary lithium batteries, polymer batteries, lithium-ion batteries, storage batteries.

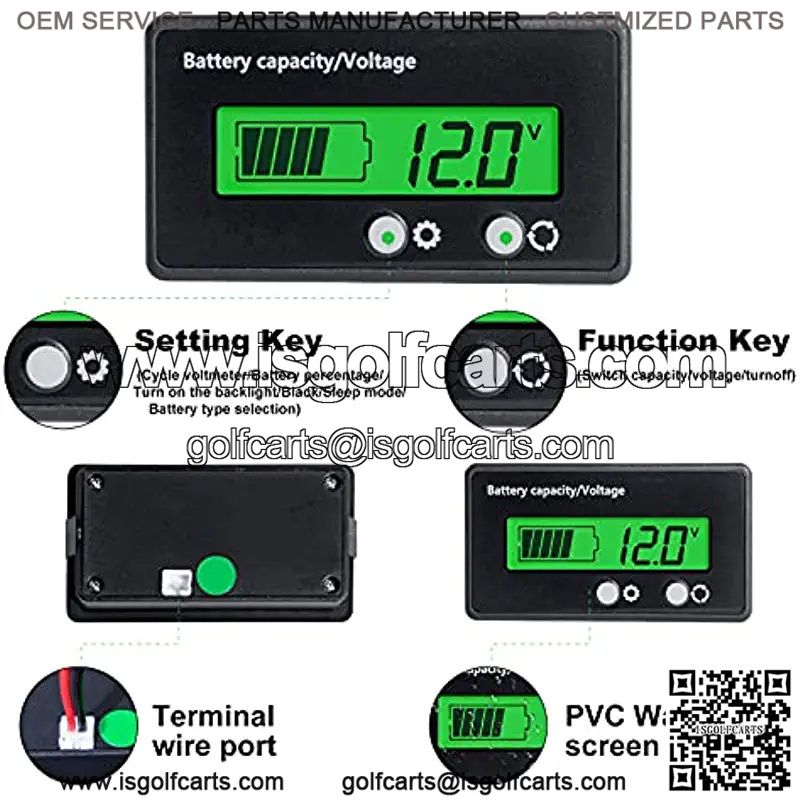

Multifunctional Battery Capacity voltage meter Indicator – Battery tester Right Switch key can switch voltmeter, battery percentage, switch off. Left setting key have several functions: Cycle voltmeter/battery percentage, turn on the backlight, black, sleep mode, battery type selection etc.

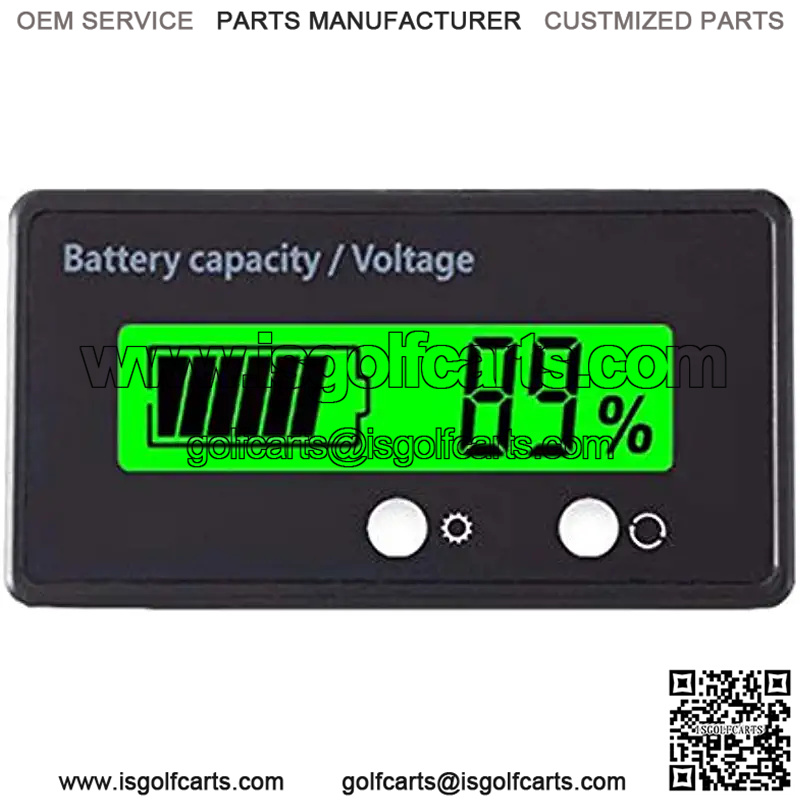

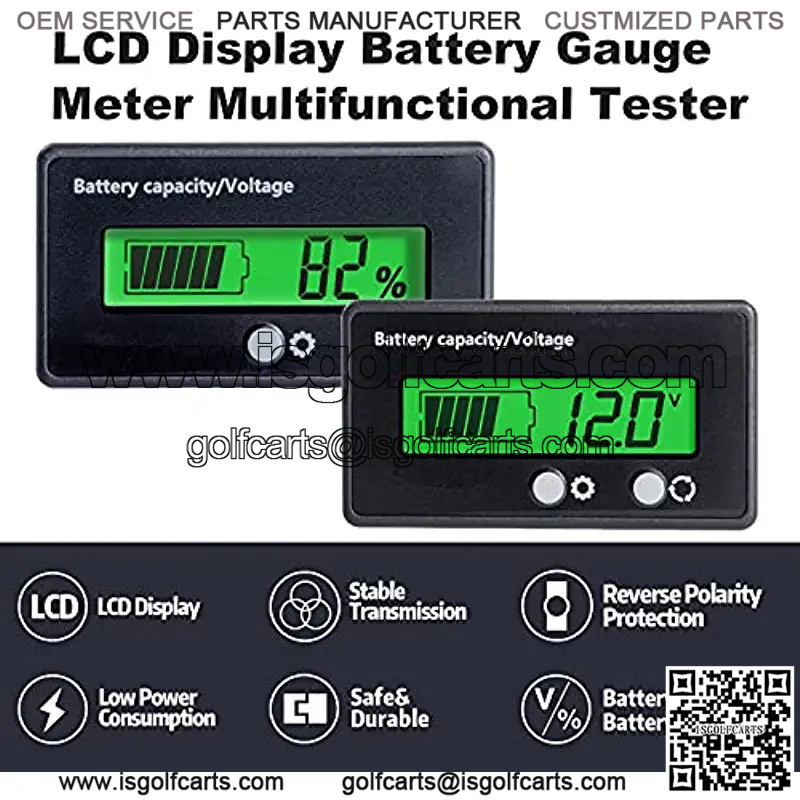

High Quality of battery voltage meter – Large LCD screen display with green backlit and low power consumption.Two display modes can be available: battery symbol and battery percentage, battery symbol and voltmeter.

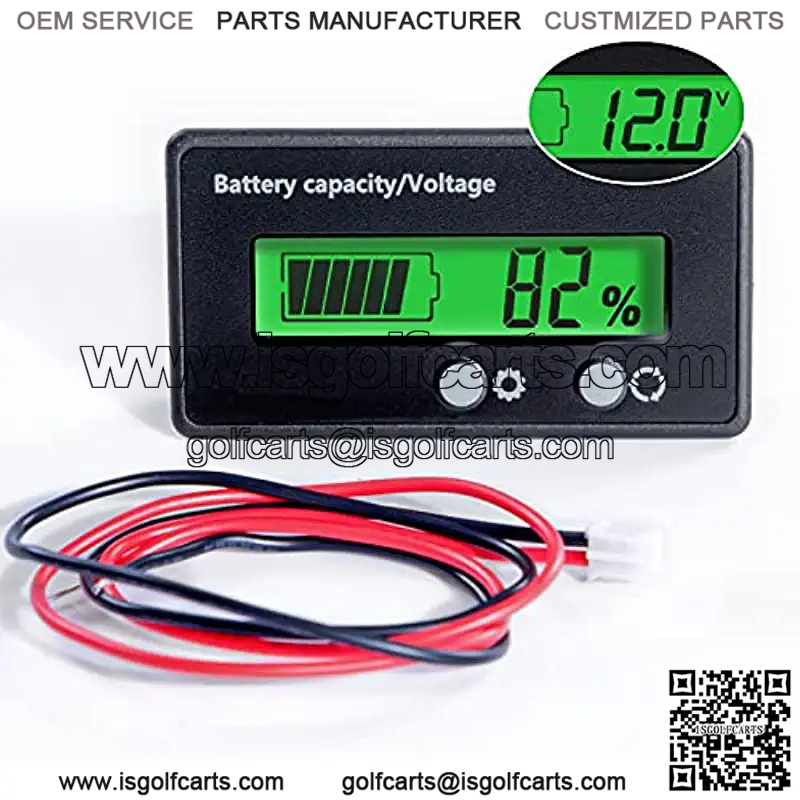

Safety to Use – The battery voltage meter Built-in 30cm power cable, simple to connect. Reverse protection design, won’t burn if connect reversely.
Portable and Waterproof voltage meter- Small size, light weight, equipped with a PVC film, the surface is waterproof.
Product Description
12V 24V 36V 48V 60V 72V 84Vbattery capacity indicator& Voltage Meter with LCD Display Green Backlight
Waterproof Monitor Gauge Tester for 3S-26S Lithium Batteries and Lead-acid Batteries
Functions of battery capacity indicator:
1. Manually switch battery percentage / voltage / power off
2. Automatic recycling display battery capacity / voltage per 2 seconds (Settable)
3. 10s delay auto off (Settable)
4. Double discharge curve selection (Settable)
Specifications:
Color: Black
Weight: 18g
Material of battery capacity indicator: HTN / PCB
Dimensions: 61.3 * 33.3 * 13.5mm / 2.4 * 1.3 * 0.5in
Wire Length: 30cm / 11.8″
Voltage Range: 6-63 (V)
Circuit Load Current: 5 – 6mA
Storage Temperature: -10 ~ 50
Suitable for: 3s-26s 3.7V Lithium Batteries; Lead Acid Batteries 12V, 24V, 36V, 48V, 60V 72V 84V;
Setting Instruction:
1 – Connect the cable to the battery.
2 – Hold down the setting button and plug in the connector at the same time.
3 – Release the setting button and you should see P01. P is the type of battery: P = lead acid, L = lithium, F – lithium iron phosphate.
4 – Press the setting button to select P, L or F.
5 – The number 01 is the number of cells or battery types For lead acid batteries, P: 01 = one 12v battery, 02 = two 12v batteries, etc. For lithium batteries, L: 01 = one 3.7v cell, 02 = two 3.7v cells, etc. For lithium iron phosphate, F: 01 = one 3.2v cell, 02 = two 3.2v cells, etc.
6 – Press the setting button to add 1 to the number, function button to subtract 1.
7 – After setting, e.g., P01, hold the function button down to display S – 1.
8 – Press the setting button to select 1 – 5.
9 – Unplug the connector to save the settings.
10 – Plug the connector back in. Package List:
1 x Battery Capacity Voltage Meter with Connecting Cable
